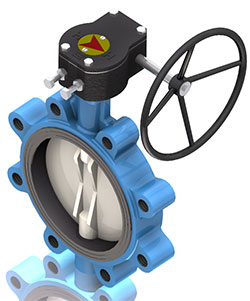

CENTER DISC BUTTERFLY VALVE

CENTER DISC BUTTERFLY VALVE

Features

  • Design Std.API 609 / EN 593 / IS 13095
  • Face to Face Dimension as per BS EN 558.
  • Testing as per API 598 / EN 12266-1
  • Suitable for mounting between all standard Flanges are ANSI/BS/DIN/PN
  • Tight shut off

    • Size

  • 1.1/2”(40MM) TO 24”(600MM)

    • Rating

  • PN10,PN16,& #150

    • Materials of Construction

    Sr.No  Part Name  Material Option
    01 Body CI GG25,DI GGG40,ASTM A216 WCB, /A351 CF8,CF8M,CF3,CF3M/A352 LCB/A890 DUPLEX ,AB2
    02 Disc DI GGG40,ASTM A216 WCB, /A351 CF8,CF8M,CF3,CF3M/A352 LCB/A890 DUPLEX ,AB2
    03 Seat EPDM, NITRILE, VITON, NEOPRENE,
    04 Spindle ASTM A276 SS410, SS304, SS316
